    Advanced Analysis of Curved Girder Bridges Explained

    2023.11.03
    Table of Contents Click the table of contents for details.

    Overview



    Curved girder analysis is not easy like straight girders, and only limited software can handle this problem. Dr. Watanabe developed a full influence line theory for three-span continuous curved girders. The detailed theory is quite interesting, but only the methodology of how to use his methods is discussed in the article. His methods give an exact solution for a symmetric three-span curved girder, and the warping effects are not included. As always, start with an example. The input and output are self-explanatory and detailed discussion is not provided.




    Figure 1 Three-span continuous curved girder

    Figure 1 Three-span continuous curved girder



    Input

    Dr. Watanabe's method requires only five inputs.



    Side span angle = 25°

    Center span angle = 40°



    Side span stiffness ratio

    Side span stiffness ratio



    Center span stiffness ratio

    Center span stiffness ratio



    Moment of inertia ratio

    Moment of inertia ratio



    Influence line due to point load

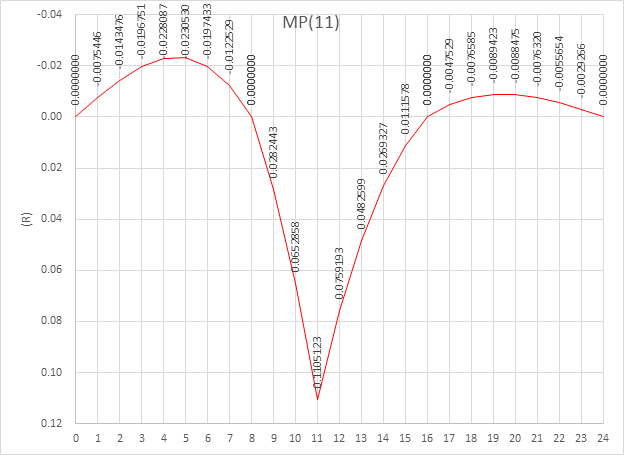

    Figure 2 Moment at 3/8 location, span 2

    Figure 2 Moment at 3/8 location, span 2




    Figure 3 Torsion at 0/8 location, span 2
    Figure 3 Torsion at 0/8 location, span 2

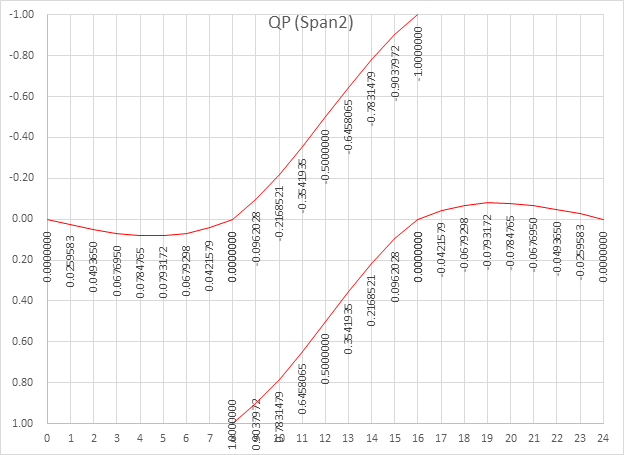

    Figure 4 Shear, span 2
    Figure 4 Shear, span 2




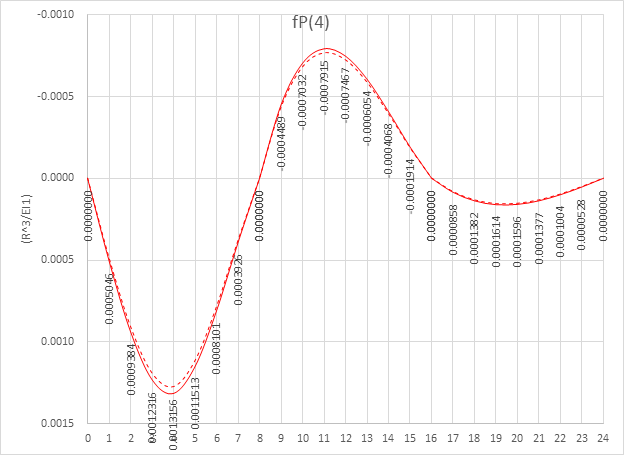

    Figure 5 Deflection at 4/8 location, span 1
    Figure 5 Deflection at 4/8 location, span 1




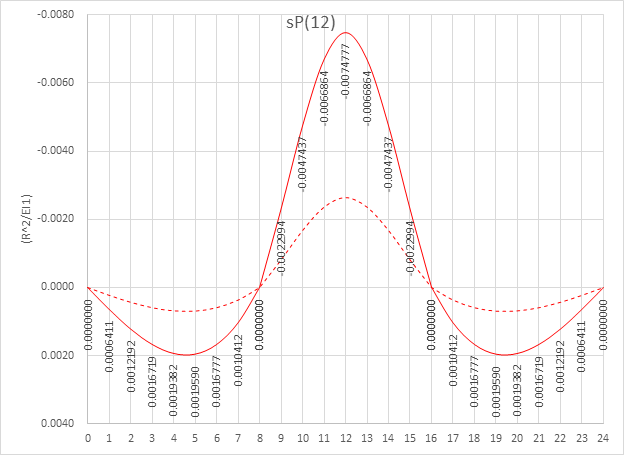

    Figure 6 Twist angle at 4/8 location, span 2
    Figure 6 Twist angle at 4/8 location, span 2



    Influence line due to torsional moment


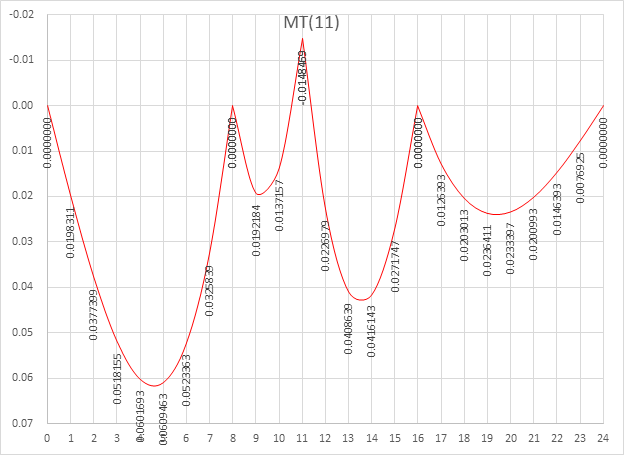

    Figure 7 Moment at 3/8 location, span 2

    Figure 7 Moment at 3/8 location, span 2




    Figure 8 Torsion at 3/8 location, span 2
    Figure 8 Torsion at 3/8 location, span 2

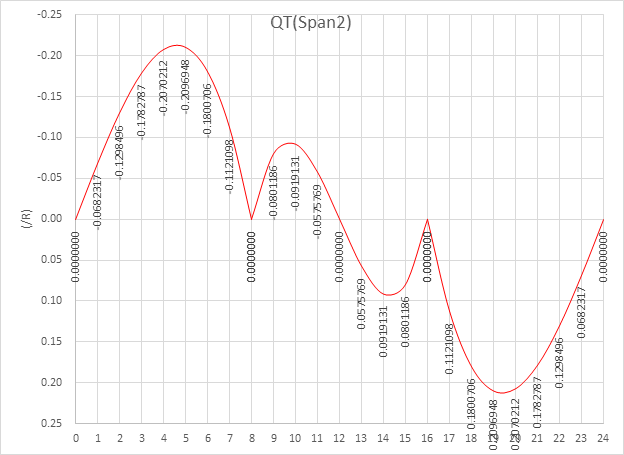

    Figure 9 Shear, span 2
    Figure 9 Shear, span 2




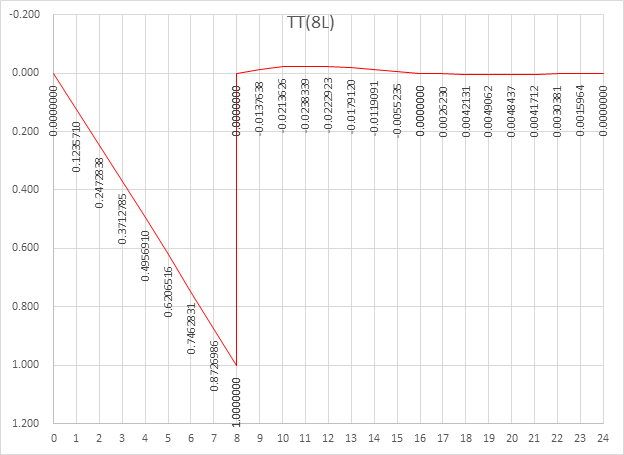

    Figure 10 Torsion at 8/8 location, span 1
    Figure 10 Torsion at 8/8 location, span 1

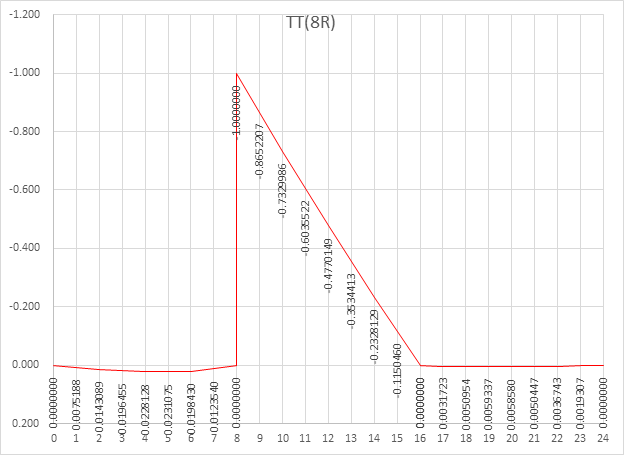

    Figure 11 Torsion at 0/8 location, span 2
    Figure 11 Torsion at 0/8 location, span 2

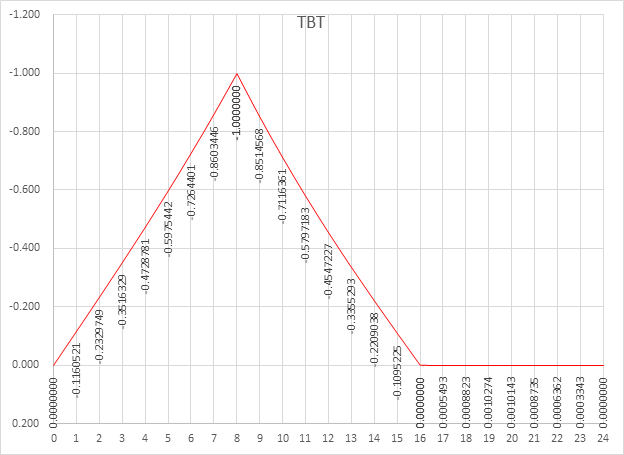

    Figure 12 Torsion at support B
    Figure 12 Torsion at support B




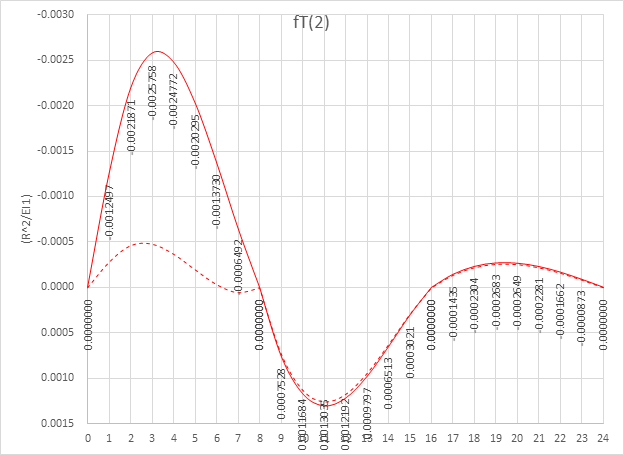

    Figure 13 Deflection at 2/8 location, span 1
    Figure 13 Deflection at 2/8 location, span 1

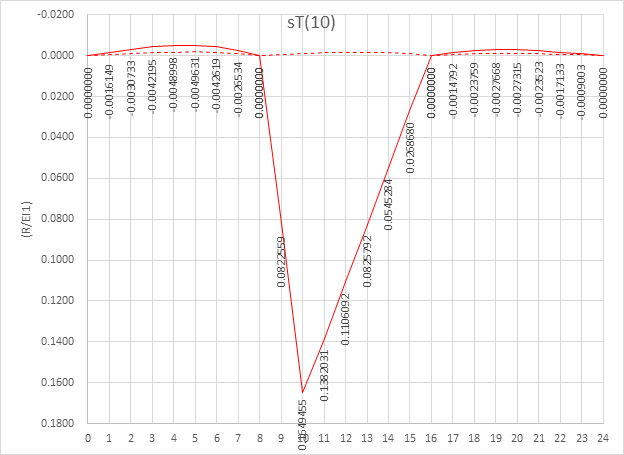

    Figure 14 Twist angle at 2/8 location, span 2
    Figure 14 Twist angle at 2/8 location, span 2



    Download Full Analysis Result [Click]
