Introduction
In the quest for sustainable energy solutions, wind energy has emerged as a frontrunner. However, as wind turbine technology rapidly evolves with taller towers and larger rotors, the complexity of foundation design significantly increases. This complexity is primarily due to larger overturning moments and the cyclic nature of the loading on the foundations. The webinar I attended recently shed light on these challenges and the cutting-edge research being conducted to address them. This article delves into the key takeaways from this enlightening session.
Motivation Behind the Research
The growing demand for renewable energy sources has catapulted wind turbines to the forefront of green technology. This surge in interest has led to wind turbines becoming more robust and efficient. However, this progress brings with it a set of challenges, particularly in foundation design. Traditional design practices are proving to be overly conservative for these new-age turbines, leading to potential overdesign. This scenario underscores the need for thorough investigations into both monotonic and cyclic behaviors of wind turbine foundations, ensuring their safety and cost-effectiveness. The use of advanced 3D numerical simulations is now crucial for designing these modern foundations.

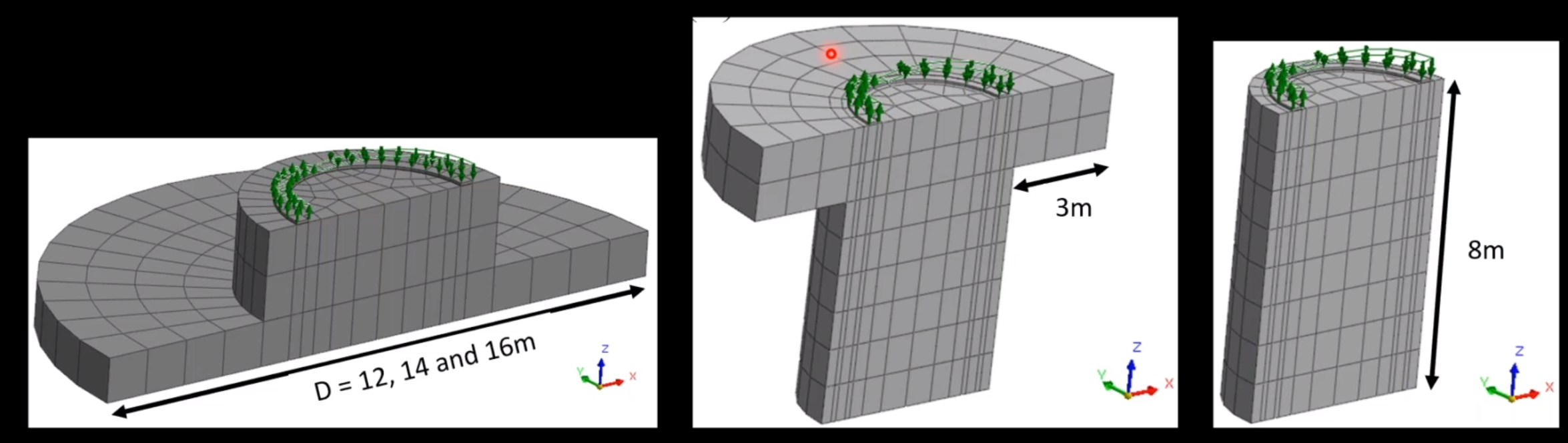

Innovations in Modeling: MIDAS GTS NX

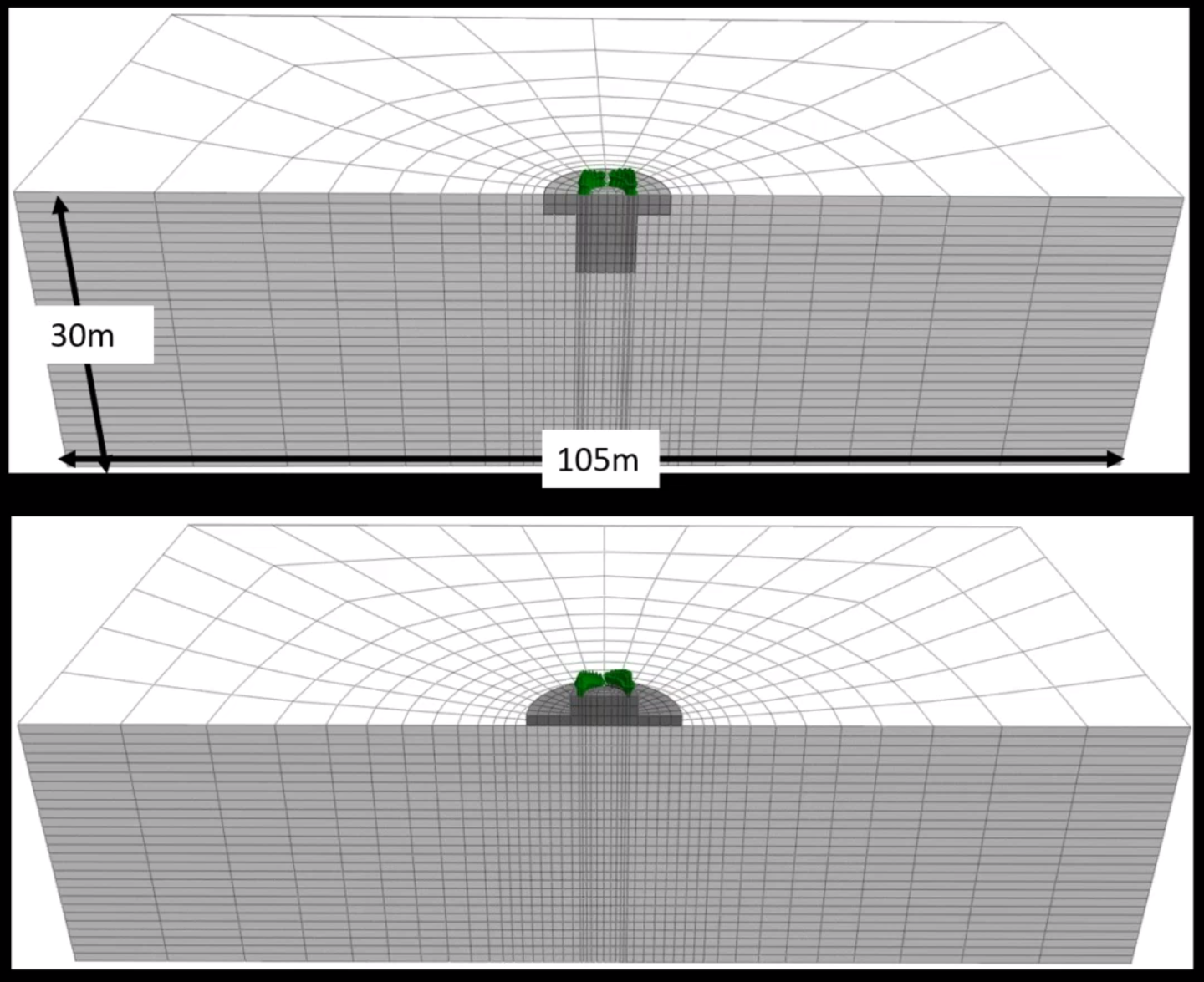

The webinar highlighted the use of MIDAS GTS NX for creating detailed 3D FEM models of wind turbine foundations. These models, with their structured mesh and 2nd order hexahedron elements, take full advantage of symmetry and do not allow tensile stress at the soil-structure interface. The modeling process includes several phases, from generating initial stress conditions to the application of vertical and overturning loads. This comprehensive approach ensures a realistic and accurate representation of foundation behavior under various loading conditions.

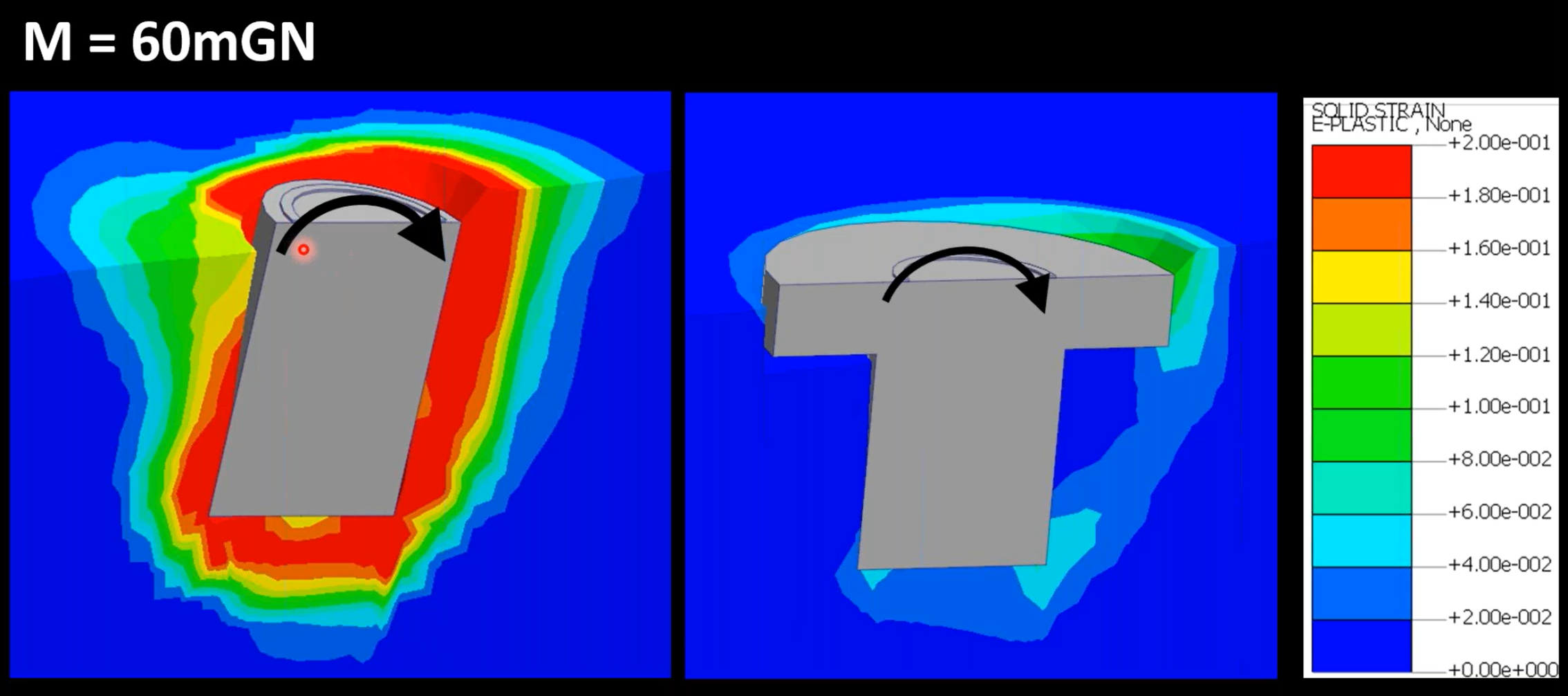

Behavior under Monotonic Loading

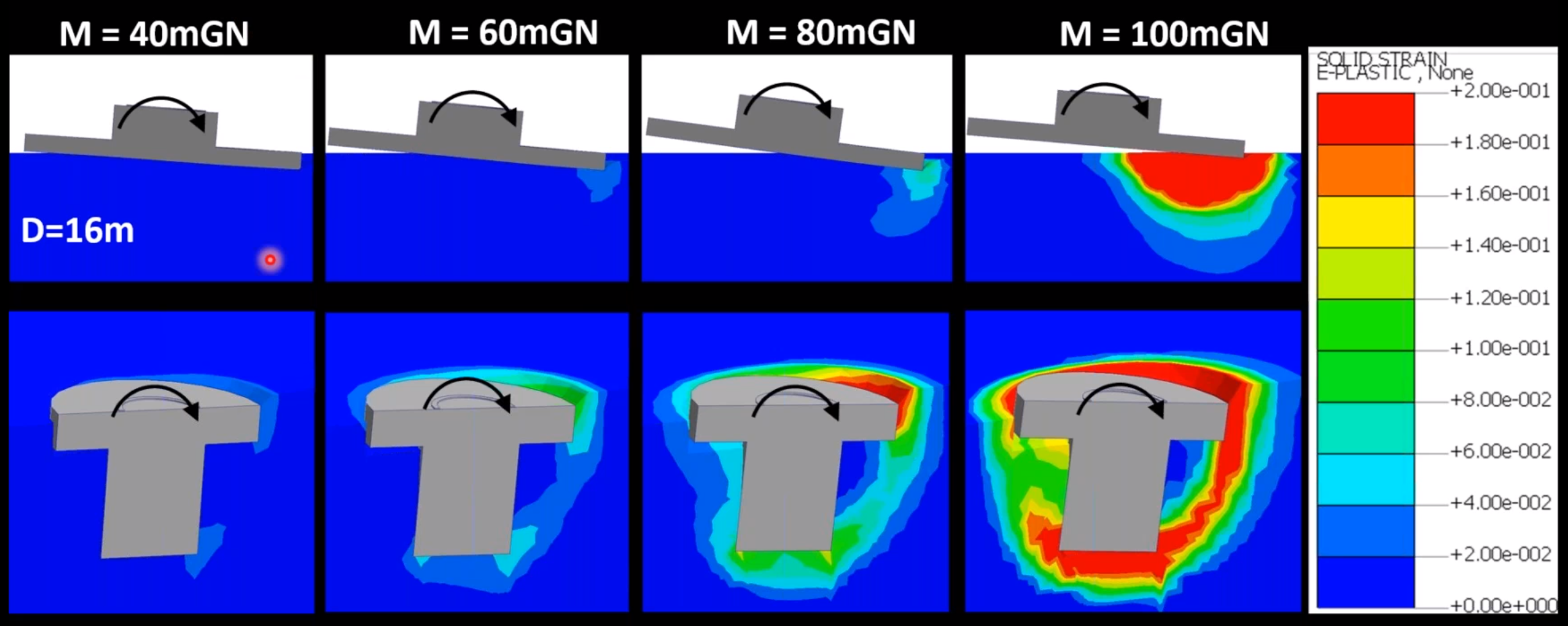

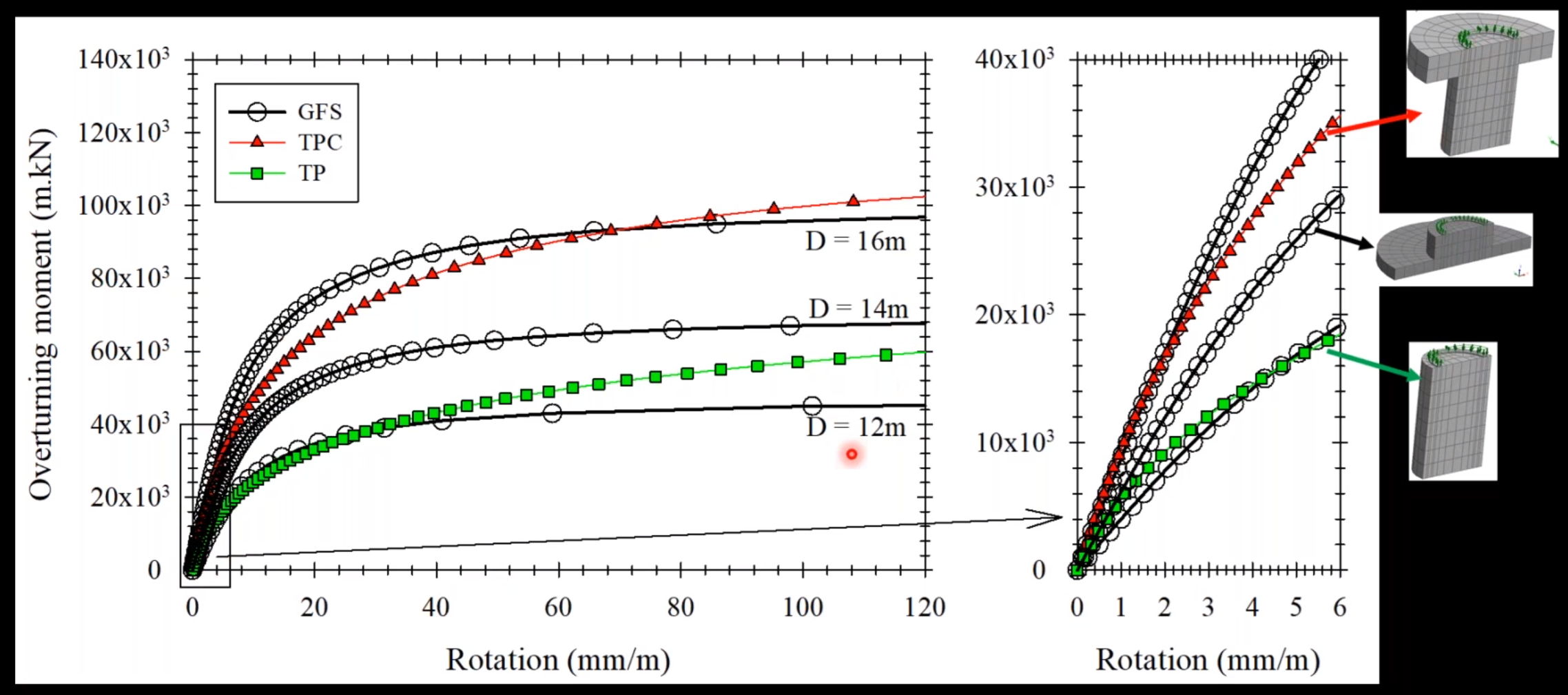

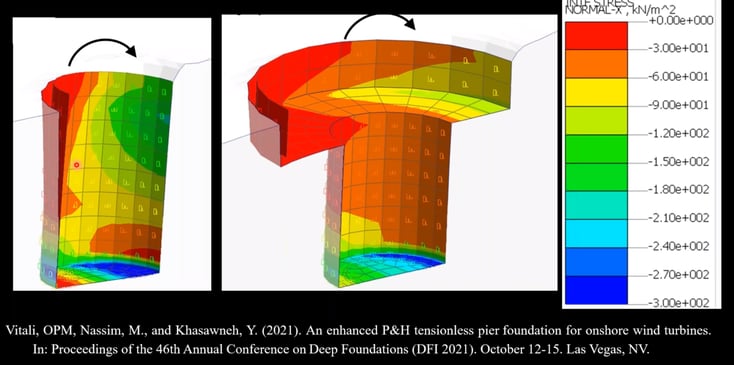

Under monotonic loading, the behavior of wind turbine foundations reveals some critical insights. The Gravity Foundation System (GFS), for instance, tends to fail abruptly as the overturning moment reaches the resisting moment. In contrast, the Tensionless Pier Systems (TP and TPC) exhibit a hardening behavior, resisting the increasing overturning moments more effectively. This distinction is crucial for engineers and designers as it influences the choice of foundation system based on specific site conditions and turbine specifications.

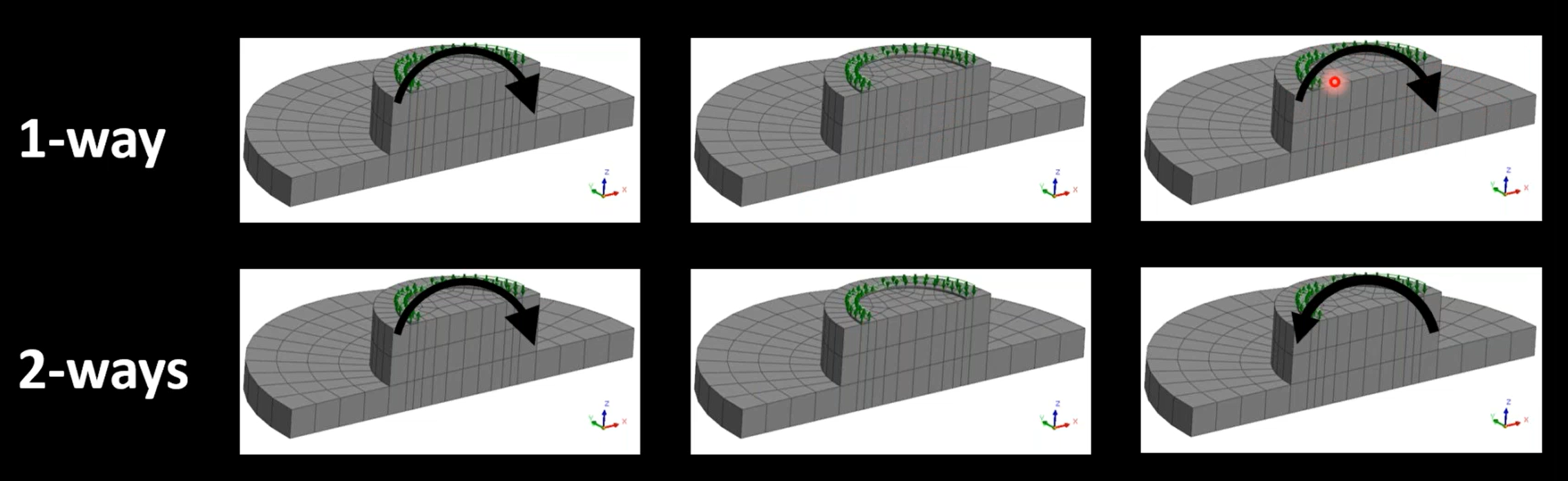

Understanding Cyclic Loading Effects

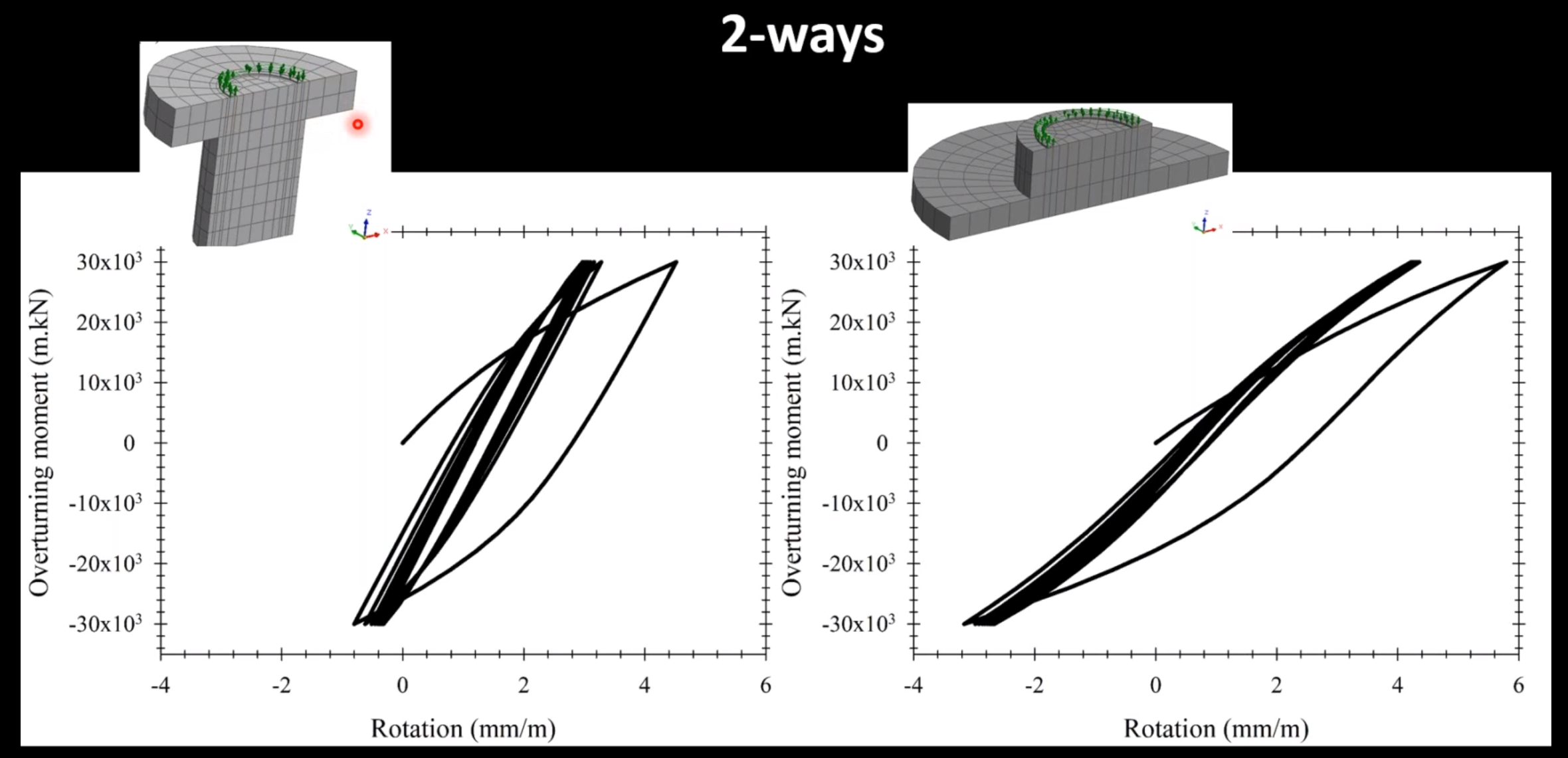

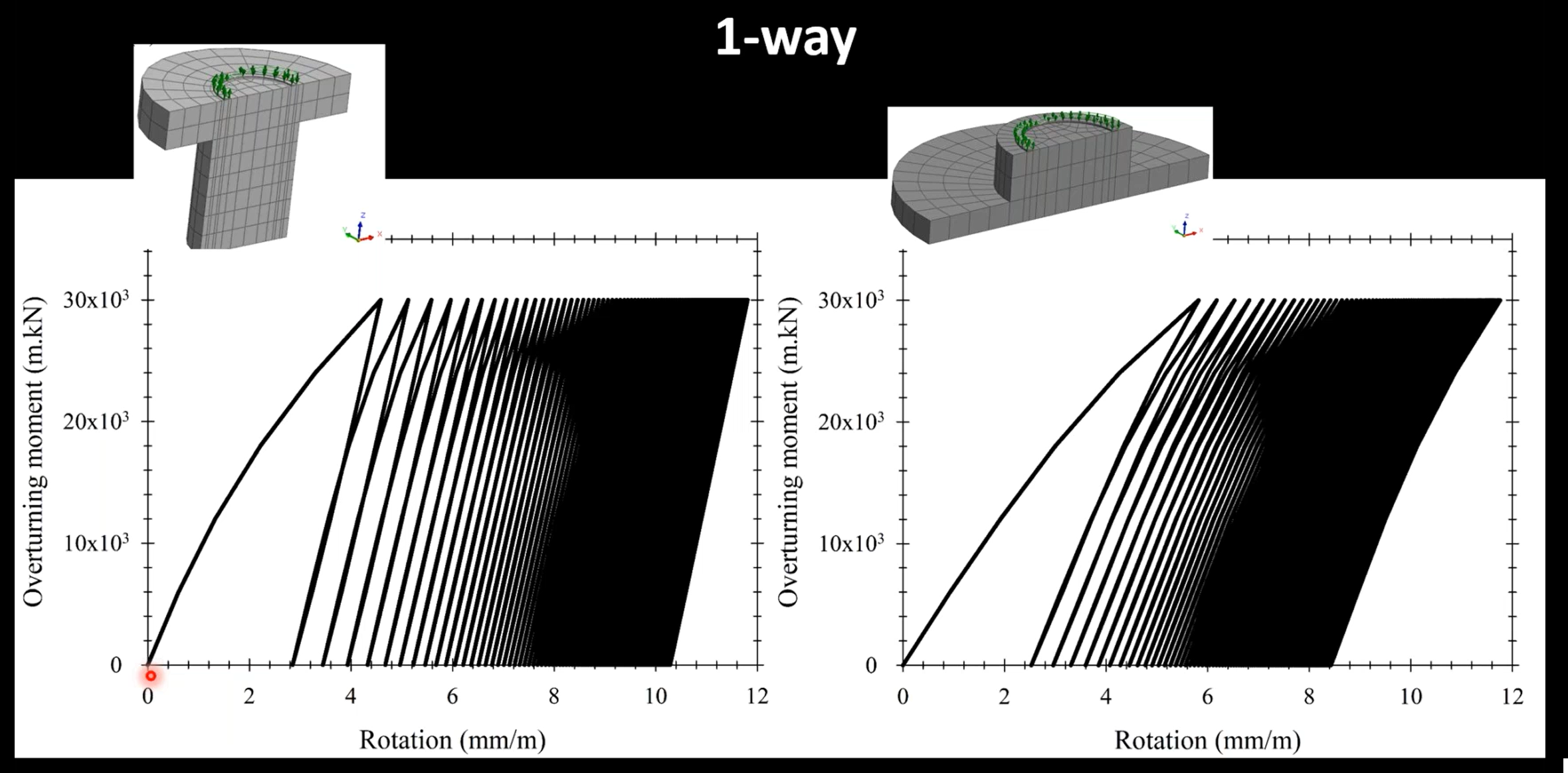

The study presented in the webinar emphasized the different responses of foundations under one-way and two-way cyclic loading. Intriguingly, two-way cyclic loading, where loads are applied in alternating directions, can improve the foundation system by compensating the accumulated rotation in each direction. This process leads to densification of the sandy soil around the foundation, increasing both soil and rotational stiffness. Conversely, one-way cyclic loading results in accumulated rotation in the same direction, which diminishes with each cycle, highlighting the need to account for these effects in foundation design.
Concluding Thoughts
The webinar concluded with a comprehensive summary of the findings. It reinforced the idea that understanding the monotonic and cyclic behavior of wind turbine foundations is vital for safe, efficient, and cost-effective design. The insights gained from this research are not just academic but have practical implications for the future of wind energy infrastructure.
In a world increasingly leaning towards renewable energy, such research is pivotal in addressing the engineering challenges posed by advanced wind turbine technologies. As we continue to push the boundaries of what's possible in sustainable energy, the learnings from studies like these will be invaluable in ensuring the resilience and reliability of our green energy solutions.
Engaging Discussions and Further Exploration
When this topic was presented in the webinar, it sparked a series of insightful inquiries from the audience. Attendees showed keen interest in the finer details of wind turbine foundation design, asking questions such as the reasons for not applying lateral shear and whether such shear forces are considered insignificant in these scenarios. Another area of curiosity revolved around the typical dimensions of pile lengths and diameters, highlighting the audience's desire to understand practical design parameters.
To delve into these intriguing questions and gain a comprehensive understanding of the complexities involved in wind turbine foundation design, we invite you to watch the full webinar. This opportunity will allow you to explore the depth of the subject matter and appreciate the innovative strides being made in sustainable energy engineering. [Click to Watch the Full Webinar]
For a detailed study on wind turbine foundation design, download the full research paper here>>
References:
Vitali, O. P. M.; Nasim M.; Khasawneh Y. (2022). Cyclic and monotonic behavior of onshore wind turbine foundation systems in cohesionless ground. In: Proceedings of Geo-Congress 2022, GSP 332:228-237. Available at: doi/10.1061/9780784484029.022
Dr. Osvaldo Vitali, an esteemed Assistant Professor in the Department of Civil and Environmental Engineering at the University of Hawaii at Manoa, brings a wealth of knowledge and experience in geotechnical and structural design. Holding a Ph.D. from the Lyles School of Civil Engineering at Purdue University, he has an impressive publication record with over 30 articles in his field. Dr. Vitali's expertise is particularly notable in the areas of tunneling, underground structures, and the complex interactions of geotechnical structures in urban settings, alongside a keen interest in applying geomechanics to renewable energy projects.
