1. Theoretical Background
Concrete silos are large structures used for storing various bulk materials such as grains, cement, coal, and chemicals. They offer high storage efficiency and excellent space utilization due to their cylindrical and vertical design, providing structural stability to withstand both dynamic and static loads during material filling and discharge processes.
Key factors to consider when designing silos include the characteristics of the stored materials, the friction coefficient between the wall and the material, horizontal and vertical pressures based on fill height, load imbalance caused by eccentric discharge, and the effects of external environmental conditions. Accurate analysis and calculations are essential to ensure the structural stability and safety of silos.
The structural behavior of silos varies depending on dynamic behavior, pressure fluctuations during filling and discharge, and the speed of material settlement and discharge. Thus, the design of reinforced concrete silos must effectively manage member stresses, shear forces, and deformations. Internationally recognized codes such as ACI 313 or ACI 318 are often used as the basis for such designs.
2. Load Calculation Method Using ACI 313-97
Structural Analysis Concept
ACI 313-97 provides detailed standards for the design and analysis of silo structures, focusing on load combinations and member stress analysis. Silos are subjected to a range of loads, including internal pressures caused by stored materials, lateral pressures on the walls, and vertical loads, necessitating complex structural analysis.
Structural analysis is used to understand how silos respond under various load conditions. Considering both static loads (e.g., the weight of stored materials) and dynamic loads (e.g., impact from discharge) is essential for ensuring silo stability and safety. Finite element analysis (FEA) or simplified design approaches can be employed to analyze these scenarios.
3. Code-Based Design Method
ACI 313-97 outlines the loads and structural design elements to be applied when designing silos. Key design concepts include:
Load Combinations: Different acting loads (dead loads, live loads, lateral pressures, etc.) are combined to establish the conditions silos must withstand.
Flexural and Shear Design: Walls and floors must resist bending moments and shear forces, requiring appropriate reinforcement placement and concrete strength.
Compression and Deformation Control: Managing structural stresses, deformations, and crack control is critical in silo design, and ACI 313-97 provides standards and guidelines for this.
Design Example: For a silo with a specific height and diameter, the loads generated by the stored materials are calculated, structural design is performed, and the required reinforcement and reinforcement materials are specified.
4. Conclusion

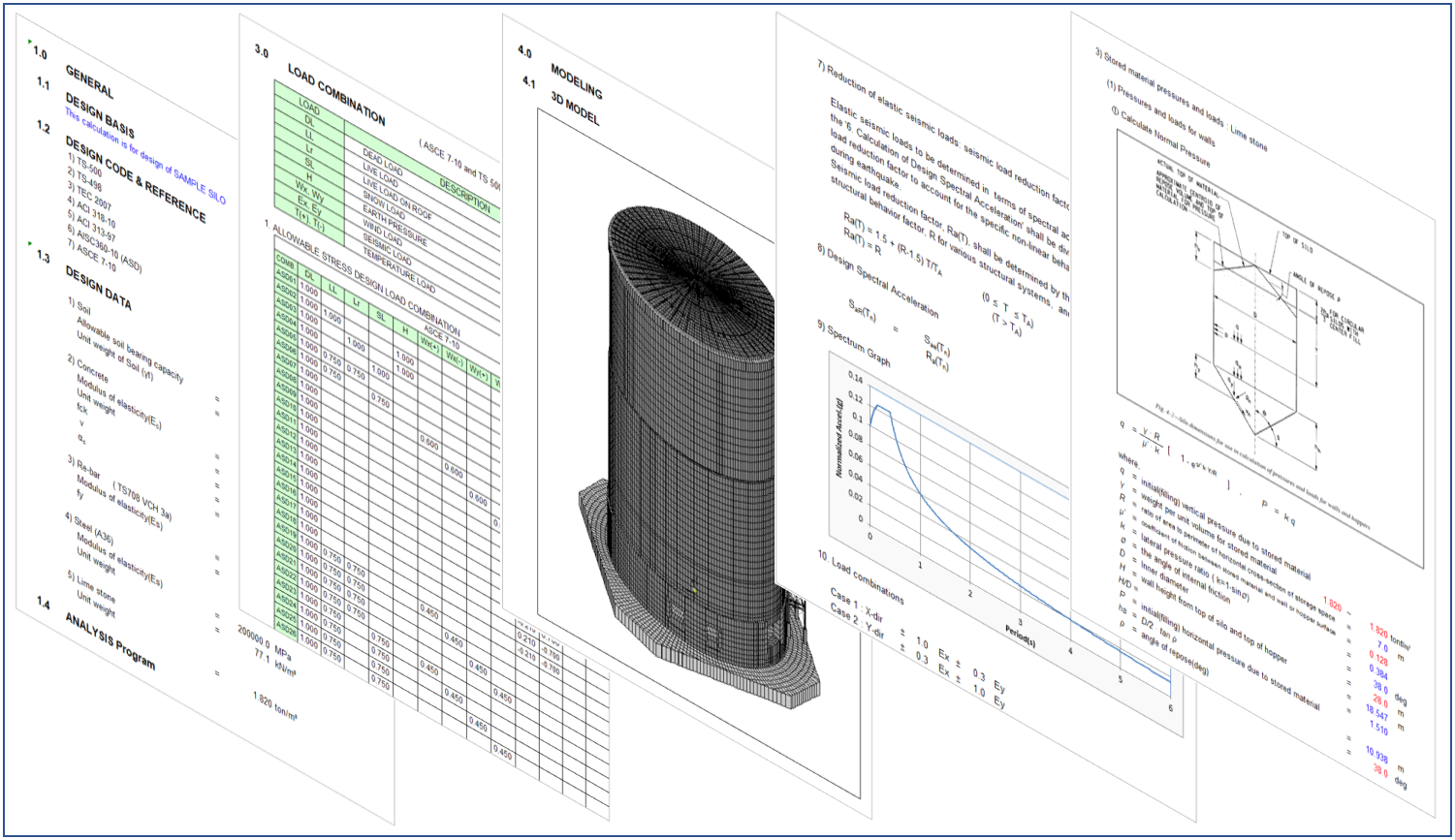

In conclusion, the design of concrete silos combines precise load calculation, structural analysis, and code-based design methodologies. ACI 313-97 offers essential guidelines for creating safe and efficient silo designs, allowing engineers to ensure the structural integrity of silos under operational conditions. By integrating theoretical principles and code applications, designers can achieve optimal silo designs that balance safety, cost-effectiveness, and structural performance. The attached Excel calculation sheet is a sample deliverable that is practical for real-work applications. It allows you to review the standards applied and the load application methods used in the design of silo structures.
