The Eurocode is a unified European structural design standard that ensures safety, serviceability, and durability while enabling cost-effective design solutions for various structures. Among them, EN 1992-1-1 (Eurocode 2) and EN 1993-1-1 (Eurocode 3) are key codes addressing the design of reinforced concrete (RC) and steel structures, respectively. This article summarizes the essential concepts and design principles of these two codes, offering critical insights for structural design professionals.
1. EN 1992-1-1 (Eurocode 2): Design of Reinforced Concrete
Concept
EN 1992-1-1 provides guidelines for the design of reinforced concrete structures, focusing on the material properties and interaction of concrete and reinforcement. This code aims to ensure safety, durability, and serviceability while promoting economic design. Reinforced concrete is a fundamental material in modern construction, offering resilience under various load conditions and a balance of practicality and efficiency.
Design Principles
EN 1992 is based on the limit state design method, which evaluates structures under three key limit states:
Ultimate Limit State (ULS): Ensures structural stability under maximum load conditions to prevent collapse.
Serviceability Limit State (SLS): Controls deformation and cracking to maintain functionality, such as limiting crack width and deflection within acceptable ranges.
Fatigue Limit State (FLS): Evaluates material fatigue under repeated loads to ensure long-term durability.
Key Design Item
Concrete Strength: Design is based on the compressive and tensile strength of concrete, depending on its grade.
Reinforcement Design: Placement, diameter, spacing, and cover thickness of reinforcement are critical factors affecting structural performance.
Crack Control: Minimum reinforcement and spacing are designed to limit crack width, ensuring serviceability and durability.
Member Shape and Dimensions: Structural members (slabs, columns, beams) must meet load and design requirements, including durability aspects like cover thickness.
Shear Design: Shear strength of beams and columns is ensured through the design of shear reinforcement and concrete resistance.
Deflection Control: Deflections of members like slabs and beams are controlled to remain within acceptable limits.
Durability Considerations: Structures are designed to withstand environmental conditions (moisture, salt, chemicals), adhering to cover thickness and durability guidelines.
2. EN 1993-1-1 (Eurocode 3): Design of Steel Structures
Concept
EN 1993-1-1 addresses the design of steel structures, offering systematic solutions for stability issues like buckling and torsion. Steel structures, with their high strength and lightweight properties, are widely used in large-scale projects, high-rise buildings, and bridges. This code aims to achieve both structural stability and economic efficiency.
Design Principles
Like EN 1992, EN 1993 follows the limit state design method, focusing on the following:
Ultimate Limit State (ULS): Ensures stability of steel members under design loads.
Serviceability Limit State (SLS): Controls deflections, residual deformations, and vibrations to maintain functionality.
Key Design Item
Cross-Section Classification: Steel sections are classified into four categories based on flange and web slenderness:
Class 1: Permits plastic design and plastic rotation.
Class 2: Allows plastic design but limits rotation capacity.
Class 3: Elastic design only.
Class 4: Requires consideration of local buckling.
Buckling Design:
Global Buckling: Buckling across the entire member.
Local Buckling: Buckling in specific parts like the flange or web.
Lateral-Torsional Buckling: Stability of bending members is ensured by considering lateral restraint conditions.
Joint Design: Stability of bolted and welded joints is assessed for shear, tension, and rotational capacity.

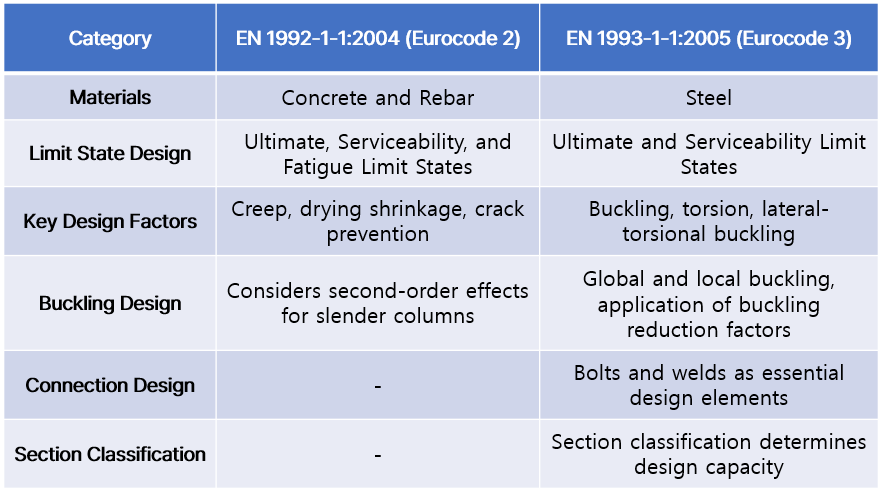

Comparison of EN 1992 and EN 1993
3. Conclusion
EN 1992-1-1 and EN 1993-1-1 provide comprehensive guidelines for designing reinforced concrete and steel structures, enabling designers to achieve safety and cost-efficiency. These codes are not only foundational in Europe but are also widely adopted internationally as global standards for structural design.
Planning a structural design project? Utilize the detailed guidelines of the Eurocodes to achieve the optimal design!

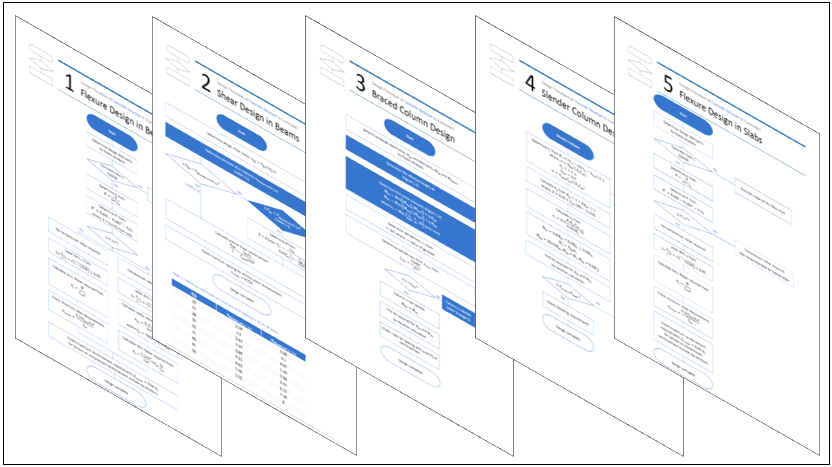

EN 1992-1-1 (Eurocode 2) Design Procedure

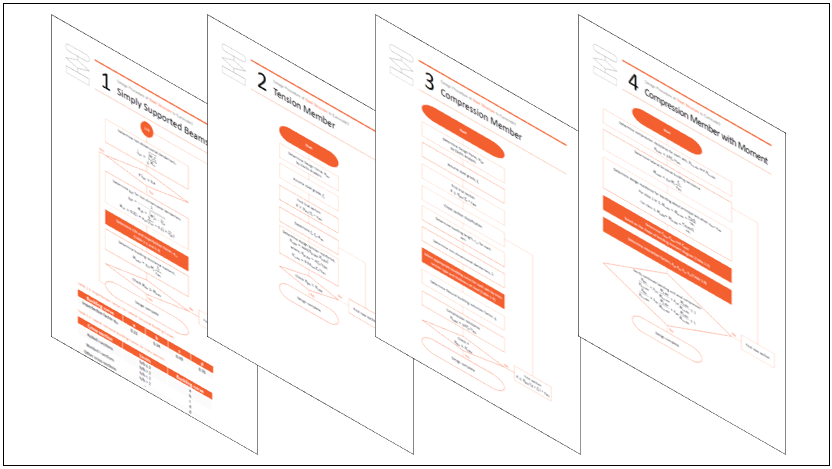

EN 1993-1-1 (Eurocode 3) Design Procedure
