1. Theoretical Background

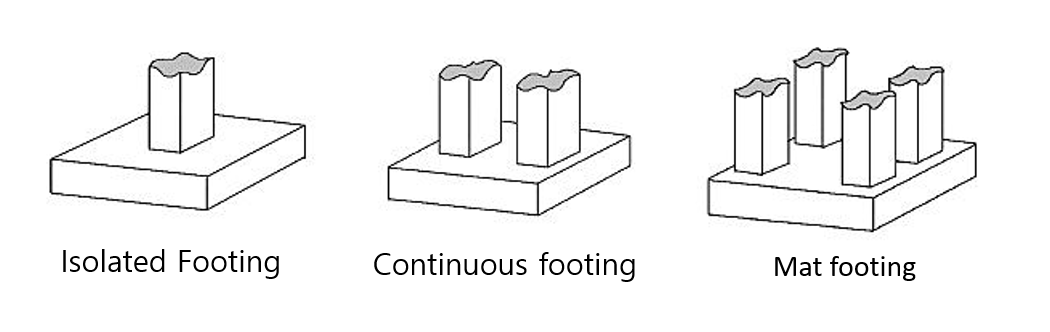

Shallow foundations are structural base systems that transfer loads directly to the supporting ground. As the name suggests, these foundations are relatively shallow compared to deeper foundation types. Primarily used for building bases, shallow foundations are suitable when the imposed loads are relatively modest, or the supporting ground exhibits sufficient bearing capacity. Shallow foundations are further classified into various types such as isolated footings, strip footings, mat foundations, and combined footings. The choice of the foundation type depends on the scale of the structure and the subsoil conditions. Shallow foundations play a critical role in distributing structural loads evenly into the soil, ensuring overall stability through direct interaction with the ground.
The design process of shallow foundations generally takes into consideration the bearing capacity of the subsoil and settlement of the foundation. This requires a stability assessment of the foundation followed by sectional analyses to determine its dimensions and reinforcement detailing.

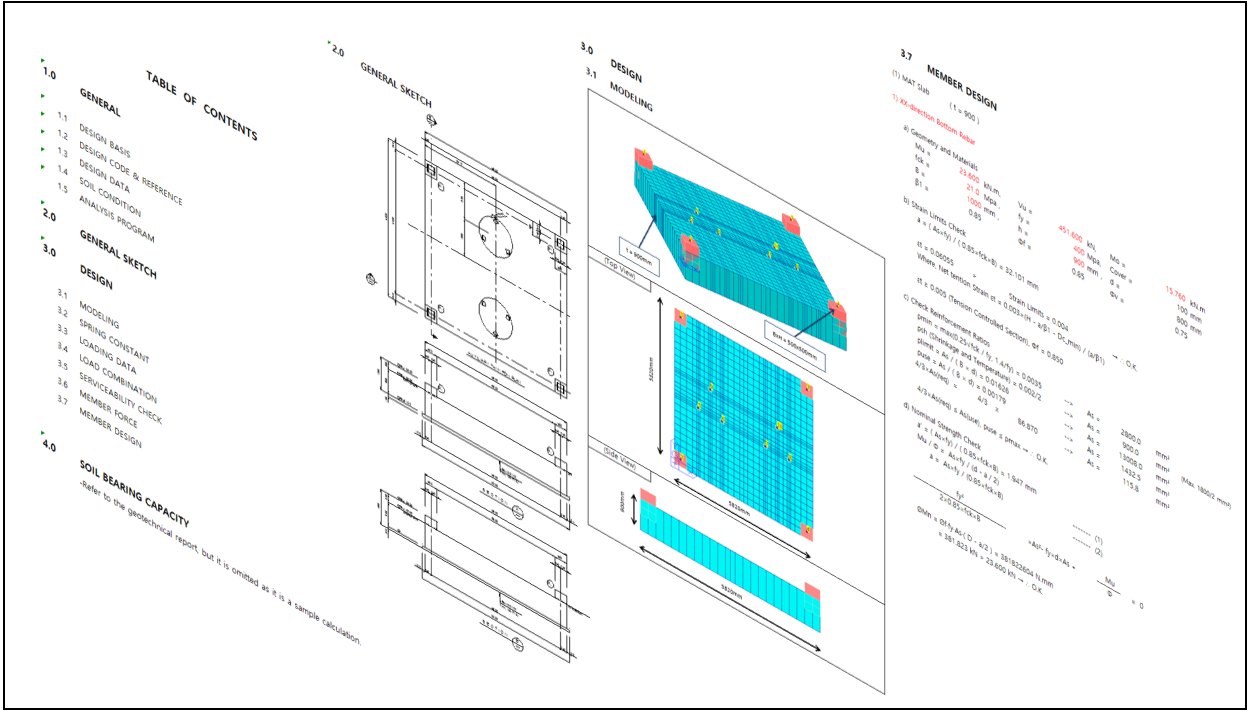

2. Structural Analysis and Design Methodology
Designing and analyzing shallow foundations involves a systematic process to guarantee structural safety and economic feasibility
-
Geotechnical Investigation and Soil Characterization:
-Site Investigation: Physical and mechanical properties of the soil are examined through sampling and on-site tests, such as boring and Standard Penetration Tests (SPT).
-Soil Characterization: Evaluations of bearing capacity, settlement characteristics, and groundwater levels are conducted to assess subsoil stability.
-
Load Assessment:
The self-weight of the structure, imposed loads (operational, seismic, etc.), and other relevant forces are analyzed to determine the design loads that the foundation must withstand.
-
Foundation Size and Configuration Determination:
Using bearing capacity analyses, the width, depth, and shape of the foundation are determined to ensure adequate support against loads. Design values are calculated based on theoretical equations and code-prescribed formulas to verify stability.
Overall stability assessments, including sliding, overturning, and settlement checks, are performed with appropriate safety factors.
-
Strength and Serviceability Verification:
Strength verification ensures the foundation resists bending and shear forces without failure under applied loads (vertical, lateral, moment loads). The design adheres to structural standards, accounting for reinforcement detailing, concrete cross-sections, and stress concentration factors.
Serviceability verification ensures the foundation does not exhibit excessive deformations under applied loads, preserving structural stability and functionality. Crack width limitations are especially critical, as excessive cracking could impact durability and aesthetics.
3. Considerations for Structural Analysis and Design
The following are common pitfalls and important considerations during the design and analysis of shallow foundations:
- Underestimating Soil Characteristics
Inadequate site investigations and failure to consider heterogeneity in soil properties can lead to structural instability and excessive settlement.
- Inaccurate Load Estimation
Failure to accurately reflect actual loads during the design process can result in an inability of the foundation to withstand imposed forces. Accounting for load variations is essential.
- Improper Use of Safety Factors
Overly conservative safety factors may lead to uneconomical designs, while insufficient safety factors may compromise stability. Adhering strictly to relevant codes and standards ensures appropriate safety factor application.
- Neglecting Environmental and Long-Term Maintenance Factors
Accounting for anticipated environmental conditions (e.g., seismic activity, subsidence, groundwater level fluctuations) and incorporating long-term maintenance strategies into the design are critical to foundation durability.
4. Conclusion
Designing shallow foundations necessitates a systematic and scientific approach to ensure structural stability and economic efficiency. This is achieved through comprehensive soil analyses, accurate load predictions, proper application of safety factors, and verification of strength and serviceability per established standards. Incorporating structural analysis and simulations into the design process is indispensable for anticipating potential issues and mitigating errors in practice.
