    How to Perform Time-History Analysis?

    BLOG NEWS & TRENDS

    Introduction of Functions for Time-History Analysis in midas Gen



    Process in midas Gen





    time history analysis Process in midas Gen

    time-history analysis

    Time history analysis has a procedure similar to Pushover analysis.  After running the analysis, the member force, hinge status, and story drift results should be checked.






    TABLE OF CONTENTS



















    Member Type for Time History & Definition of Hinge






    3For member type, unlike pushover analysis, the point spring and masonry are not provided.







    Hinge Models



    4



    - Kinematic Hardening Hysteresis Model



    Kinematic Hardening hysteresis model

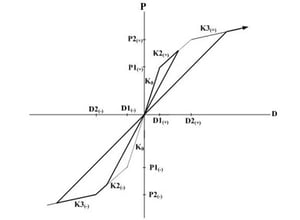

    - Origin-Oriented Type Hysteresis Model



    Origin-oriented type hysteresis model

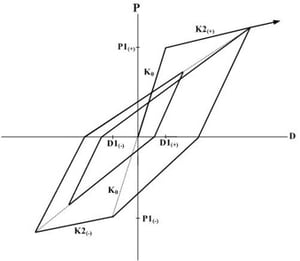

    - Clough Type Hysteresis Model



    Clough type hysteresis model

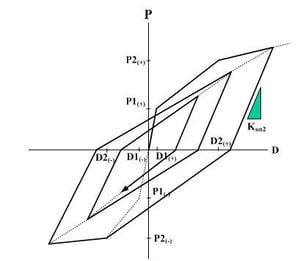

    - Takeda Type Hysteresis Model



    Takeda type hysteresis model

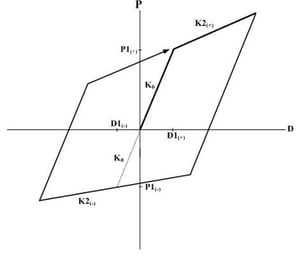

    - Normal Bilinear Type Hysteresis Model



    Normal Bilinear Type hysteresis model

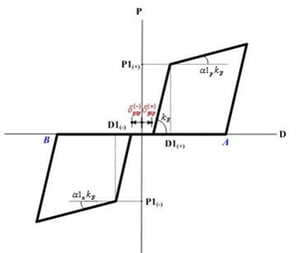

    - Slip Bilinear Type hysteresis model



    Slip Bilinear Type hysteresis model











    Hinge Model – Fiber Model


    A structural model that includes nonlinearity in a distributed fashion, using finite fiber elements, is able to characterize in higher detail the reinforced concrete elements and is thought to capture more accurately response effects on such elements.



    hinge model-fiber model- Section Division for Fiber Model Definition

    It supports generating a Mesh shape and arranging rebar automatically.

    fiber division of section dialog box- Inelastic Material Properties (Stress-Strain Curve)



    Concrete > Kent & Park Model



    Inelastic Material PropertiesRebar > Menegotto-Pinto Model



    Inelastic Material Properties

    - Fiber Cell Result Plotting



    analysis result of fiber section dialog box









    Define Time-History Load


    In order to define Time History Load, the Analysis Method, Initial Load Consideration, and Damping Method should be selected as shown below.





    define time history load











    Result of Time-History Loads


    It provides Hinge Status, Member Force/Deformation, and Energy Graph.



    - Hinge Status

    hinge status

    - Member Force/Deformation



    Member Force andDeformation

    - Energy Result



    Energy Result











    Analysis Results (Graph & Text Output)


    Gen supports to check the results of deformation, velocity, and acceleration by time at specific node or hinges in graph and text report.



    - Result Curve : Force-Deformation Curve for Each Members



    Result Curve



    - Result Curve: Time(sec)-Deformation Curve



    Result Curve











    Load Combinations for Time-History


    Gen is supporting to convenient function for checking the results of member force and deformation.
    Maximum and average values for multiple selected ground waves are provided in the result table.



    create load combinations dialog box

    - Beam force table for Max. result



    13- Beam force table for an average result



    14



    Consider Time History results in the design by inputting the load combinations.



    load combinations dialog box











    Analysis Time


    As test result, In the case of the model with 4000-analsys steps, about 5000 elements and 4000 hinges, it took about 7 minutes. And, in the case of the model with 3000 analysis steps, about 1500 elements and 6000 hinges, it took about 5 minutes. Recently, the analysis speed has been improved by 2 times.



    analysis time
