    Non-linear Temperature Gradient Part 3. Effects on Beams

    BLOG BRIDGE INSIGHT

    📢 To check the entire series, click here



    Nonlinear Temperature Effects on Beams

    (1) Basic Concept

       Through Part 1 & 2, we looked at how the temperature gradient load of a bridge is calculated based on the design criteria. Now, let's examine how the calculated load affects the bridge deck.

       Temperature load will cause deformation in members, and in the case of members with free boundary conditions, no stress occurs due to temperature load.

       Based on the beam theory, when a cross-section is remain on a plane, temperature load deformation occurs in axial deformation and bending deformation.



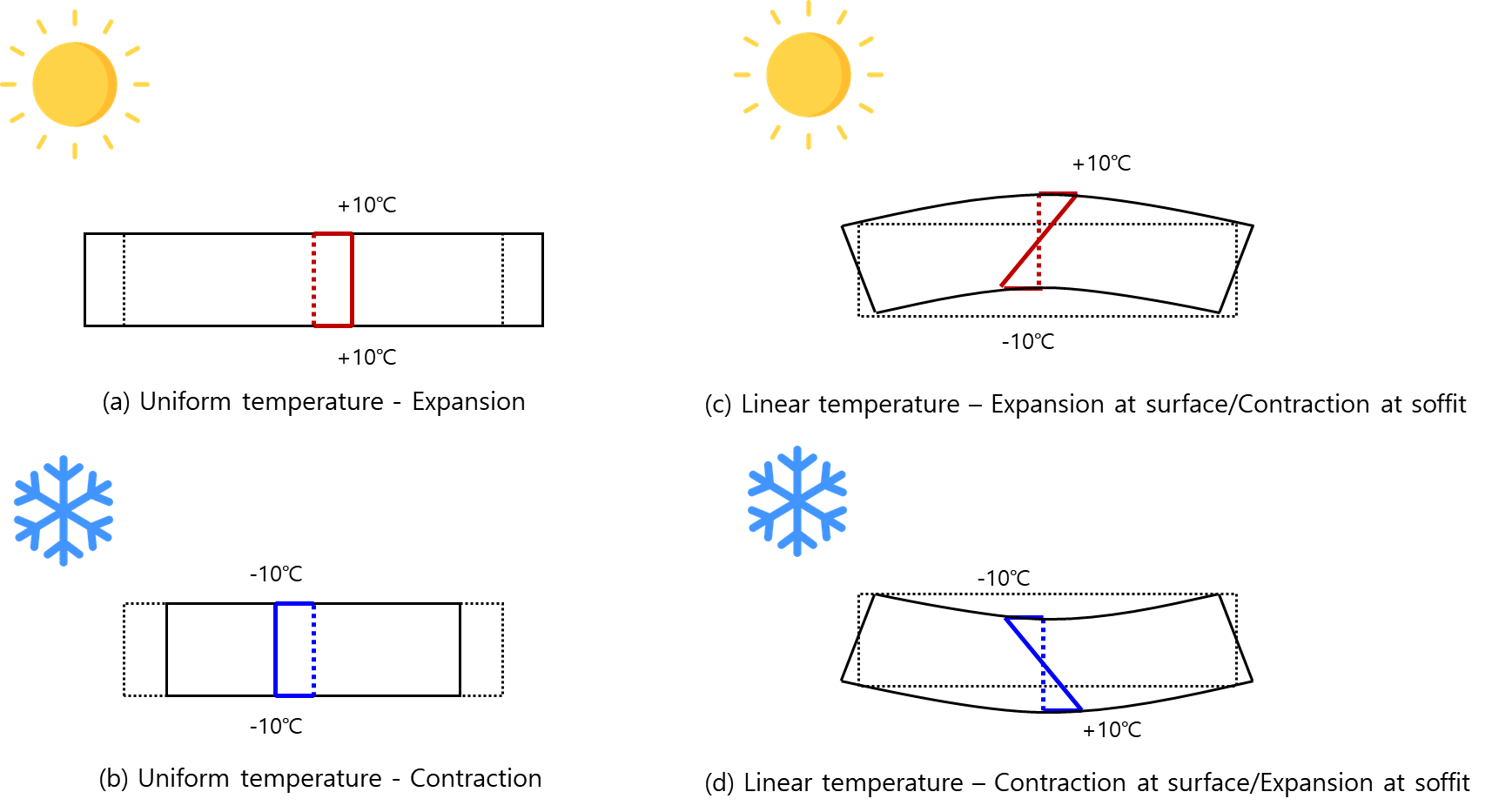

    Figure1. Deformation of a beam due to temperature load

    Figure1. Deformation of a beam due to temperature load



       When both ends of a beam are restrained and subjected to temperature load, the following stresses are generated:





    Figure2.

    Figure2.



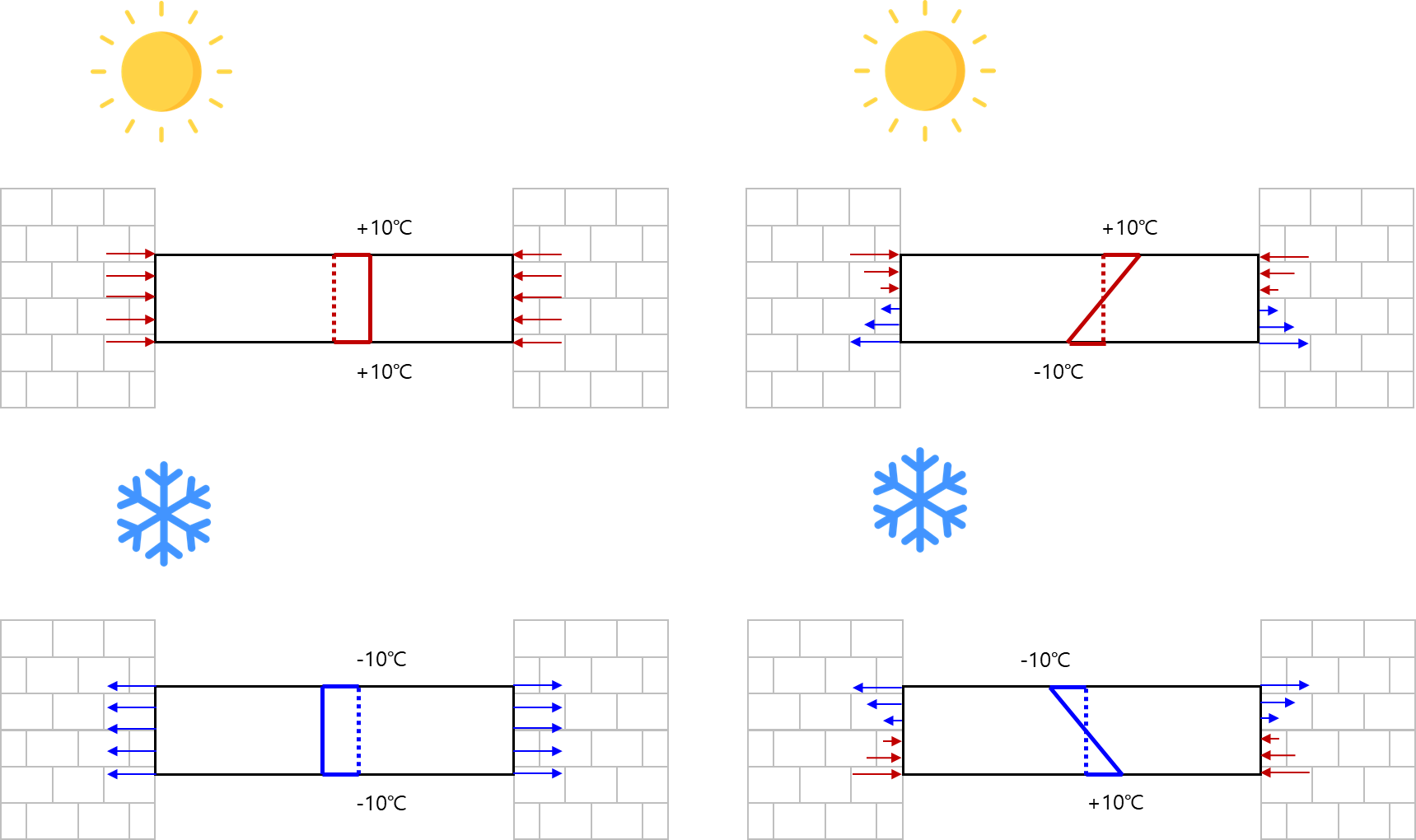

    Figure3. Effects on constrained beams

    Figure3. Effects on constrained beams



       Applying the above concept to non-linear temperature loads, even in a simply supported beam where all restraints are released, residual stress (self-equilibrating eigen stress) occurs in the beam. This can be seen as stress to maintain the equilibrium state of the member according to beam theory.



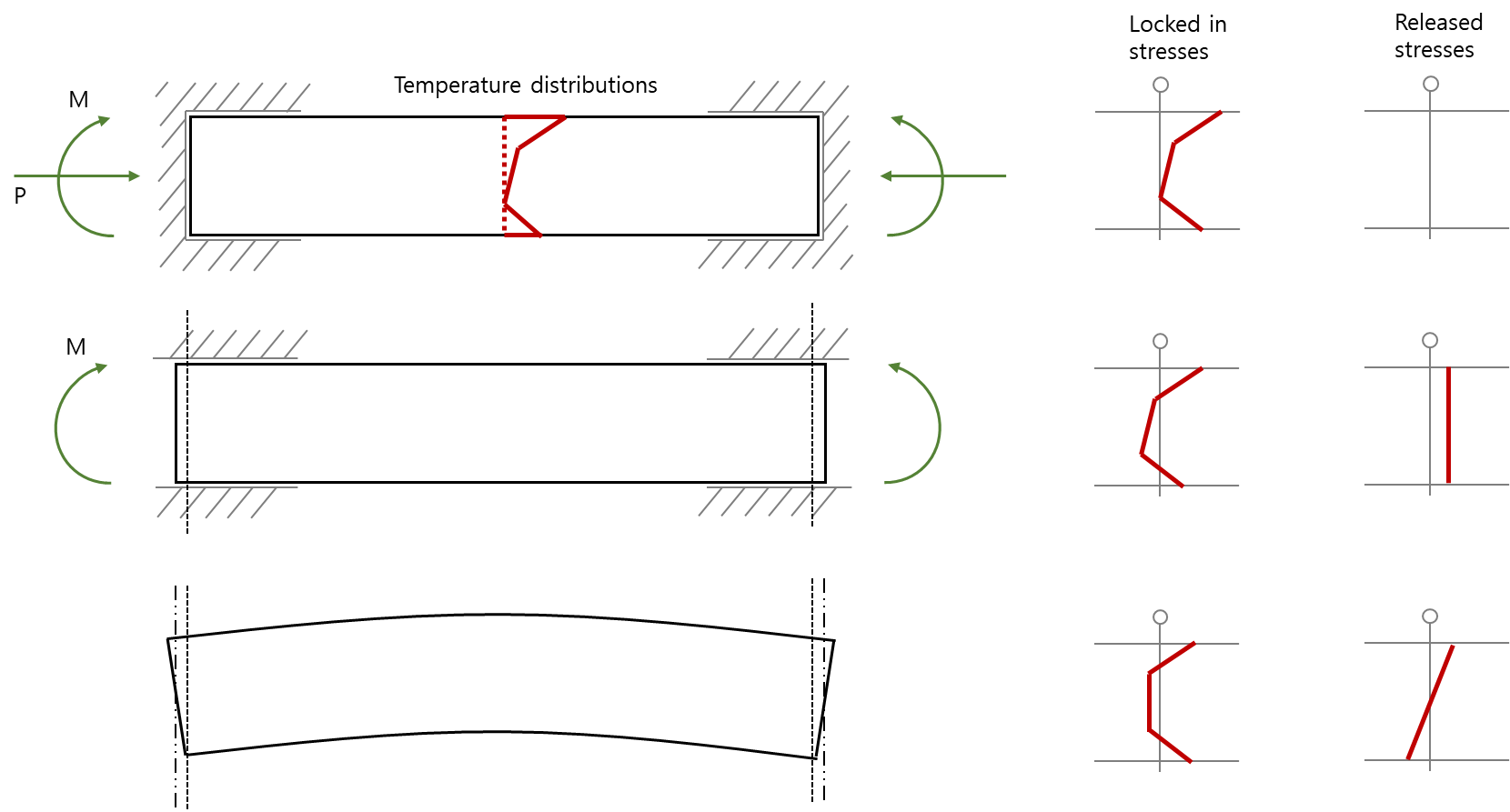

    Figure4. Variation in stress for each stage

    Figure4. Variation in stress for each stage



       Let's consider the below example to check how residual stress in a simply supported beam is calculated.



    (2) Example

       Let's assume a beam with a length of L, a width of 1.2m, and a height of 1.5m is subjected to the following non-linear temperature load:



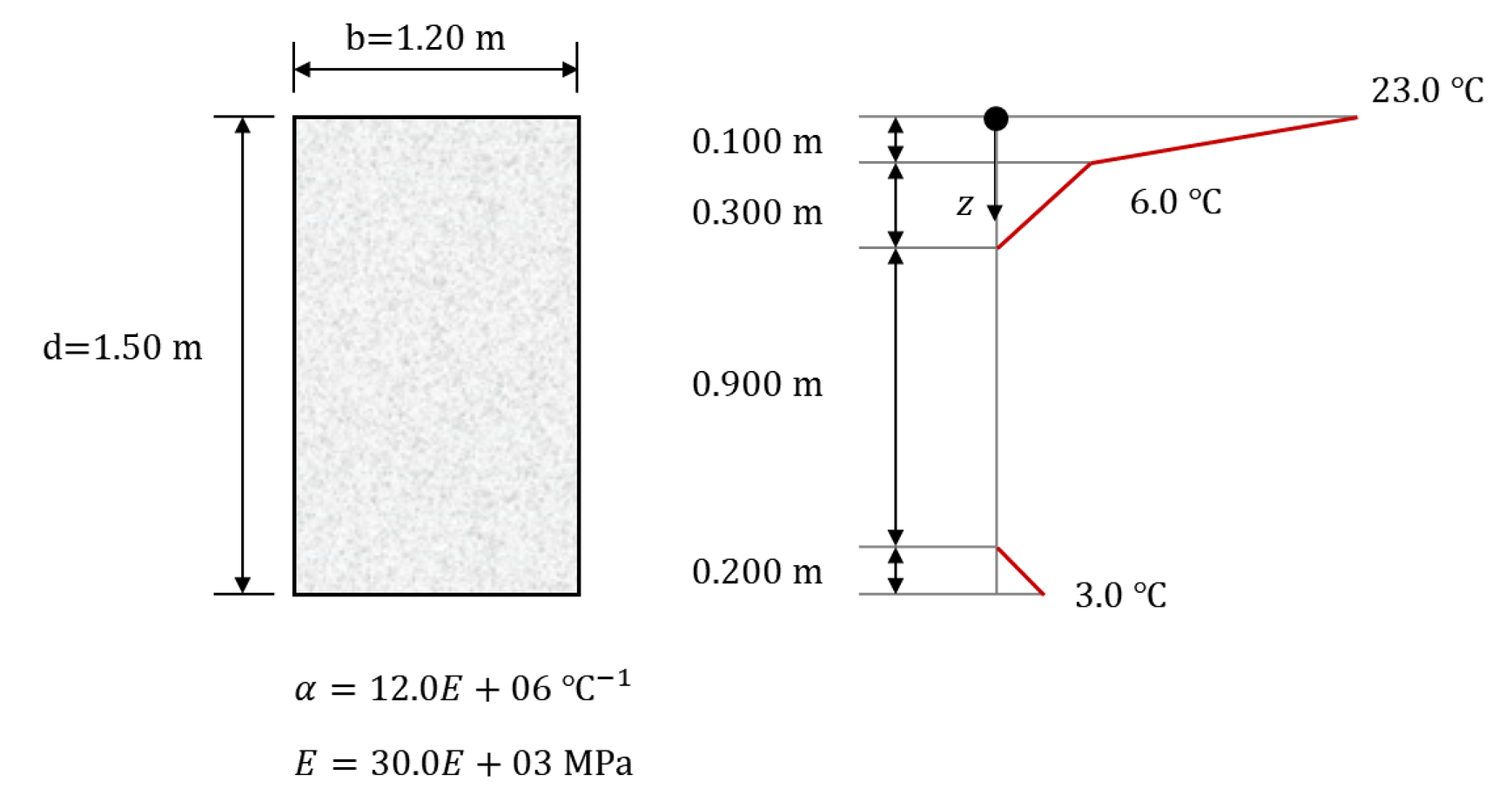

    Figure5. Example Cross Section Details

    Figure5. Example Cross Section Details



       When both ends are restrained, the stress produced in the cross-section is as follows:



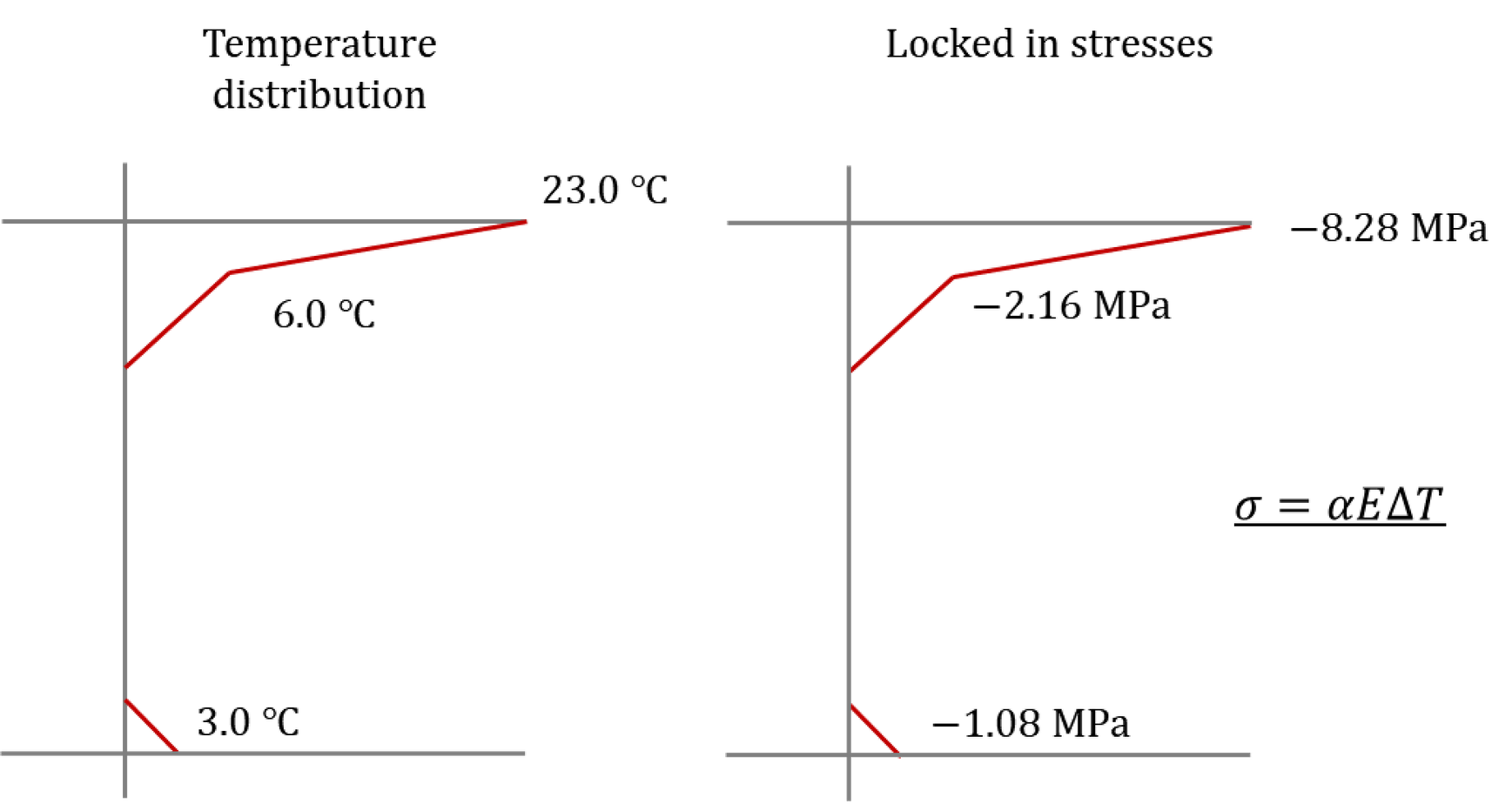

    Figure6. Restraint stress due to temperature loading

    Figure6. Restraint stress due to temperature loading



       First, let's calculate the effect of axial restraint.



    Figure7. Effect of axial restraint

    Figure7. Effect of axial restraint





    Secondly, when we calculate the effect of bending restraint, we can obtain the following results:

    Figure7. Effect of axial restraint_preview2



    Preview Banner



    You can check more of these details in the download file.



    (3) Validation of the example

    (4) Conclusion

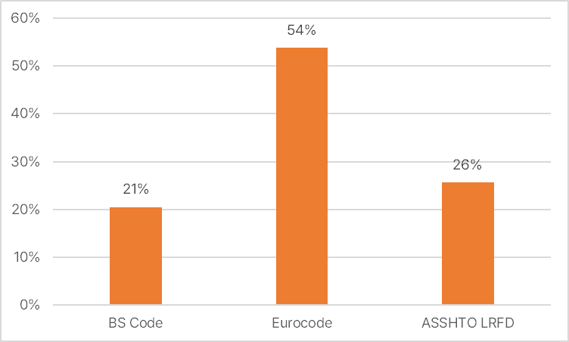

    🗳️ Quick Poll Result!
