2D Member Design & Analysis

May 25, 2021
BLOG Tips & Tutorials

OVERVIEW



2D Member Type

nGen supports various 2D member types.

So, what is the difference of 2D elements?



2D Member Type*All of these are Plate Elements, only categorized by design type.

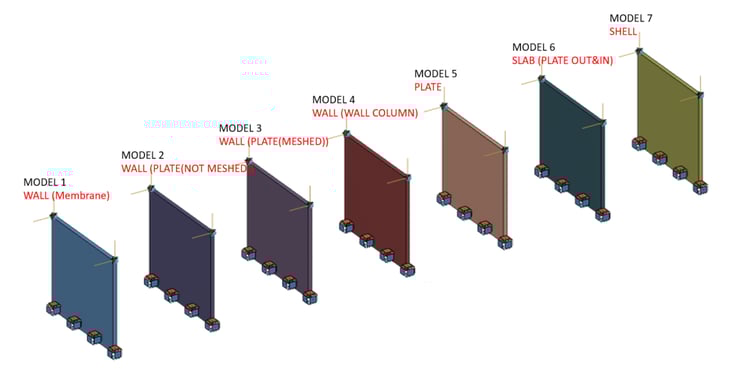

1. Categorized Characteristics of Each Model

MODEL 1: WALL (Membrance)

1. No meshed element

2. No out-of-plane stiffness

3. Only in-plane stiffness



MODEL 2: WALL (PLATE, NOT MESHED)

1. No meshed element

2. In-plane and out-of-plane stiffness



MODEL 3: WALL (PLATE, MESHED)

1. Meshed elements in Analysis

2. Identical to plate element

3. Design as wall member



MODEL 4: WALL (WALL COLUMN)

1. Identical to MODEL 3

2. Design as Column or Beam member



MODEL 5: PLATE



MODEL 6: SLAB (PLATE OUT&IN)

1. Meshed elements in Analysis

2. Identical to PLATE element

3. Design as SLAB member



MODEL 7: SHELL

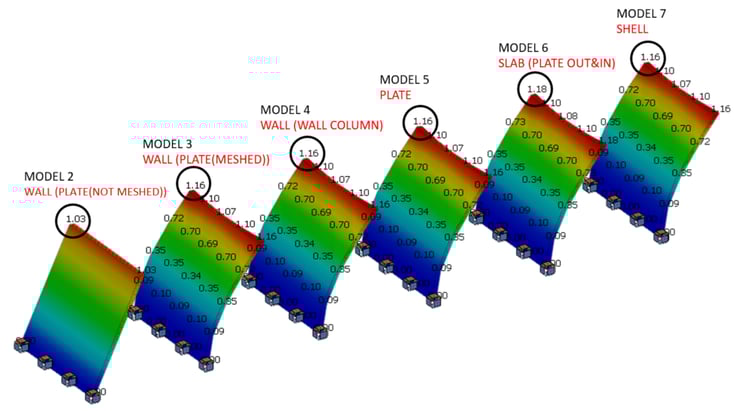

2. 2D Member Type: Analysis Result (Deformations)

2d member type_analysis results



1. Model 2 is not meshed. Therefore, it has different results from others.

2. Model 3~5, and 7 have the same results because all of them is plate element.

But, only MODEL 6 (Slab) has the different result because "DRILLING DOF" OPTION IS CONSIDERED.

* If checking off this option, MODEL 6 (Slab) will have the same result as other models.

 2d member typeAnalysis settings-1

3. Since MODEL 1 has no out-of-plane stiffness, infinite deformation can occur. So, it is excluded from the comparison.







3. 2D Member Type: Summary





Model 1

Wall (Membrane)

Model 2

Wall (Not meshed)

Model 3

Wall (Meshed)

Model 4

Wall Column

Model 5

Plate

Model 6

Slab

Model 7

Shell

Member Type Wall Wall

Wall

/ Basement Wall

Wall Column

/ Plate Beam

Plate

Slab

/ Flat Slab

/Footing

Shell
Design Type Wall Wall

Wall

/ Basement Wall

Column (Axial +Flesural) Plate (Axial + Flexural) Slab (Flesural of Out-of-Plane) Not Designed
Mehsed Shape x x o o o o o
Out of Plane Stiffness x o o o o o o
In Plane Stiffness o o o o o o o
Drilling DOF x x x x x o x

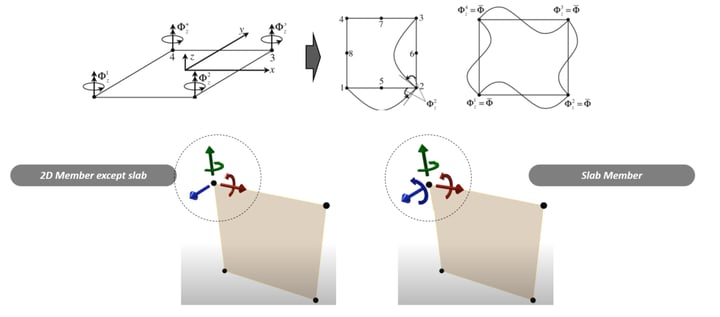

4. Drilling Degrees of Freedom

Degree of freedom for the torsion of in-plane.



2d member type_drilling degree
